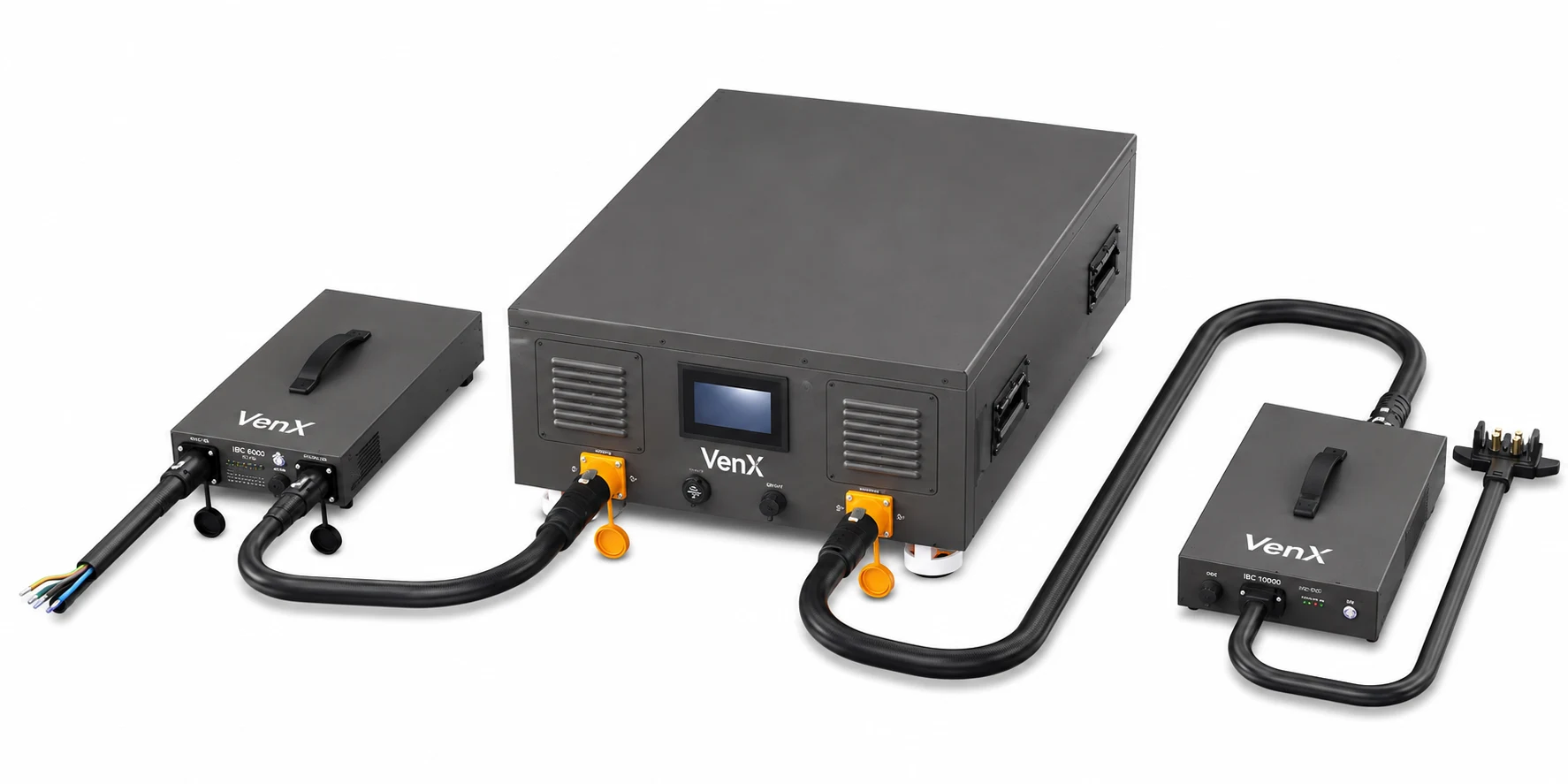

VENX / OP-25The large unit with a display is the OP-25 battery pack. The slim units without displays are the IBC6000 AC-DC and IBC10000 DC-DC charger modules.
POWER BOX / OP-25
Portable energy for agricultural drone operations.
The VenX OP-25 is a 24.1 kWh portable LFP energy system with dedicated charger modules for field operations.
24.1kWh
314Ah
6units parallel
Set price: 159,000 THB
This price covers one OP-25 with one IBC6000 and one IBC10000. Taxes, delivery and final order details are confirmed before ordering.
The OP-25 battery pack has a display. The IBC6000 and IBC10000 are slim charger modules without displays.
IBC6000 AC-DC
Slim charger module without a display for AC input
Dimensions
440 × 242.2 × 76 mm
Weight
7.5 kg
Rated input
220 Vac
Input range
90–264 Vac
Derating
2000 W at 90–185 Vac input
Output
60–87.6 Vdc and 0–70 A
Rated power
6 kW
Connection
L+N+PE
Cooling and protection
Forced air cooling and IP20
IBC10000 DC-DC
Slim charger module without a display for charging drone batteries
Dimensions
440 × 272.2 × 76 mm
Weight
10.5 kg
Input
60–87.6 Vdc
Output
50–60 Vdc and 0–200 A
Factory default current
150 A
Maximum power
12 kW
Cooling and protection
Forced air cooling and IP20
OP-25 SALES SETS
Choose a set for the charging workload
SET 01
Single-pack set
OP-25 × 1 IBC6000 × 1 IBC10000 × 1
Total energy
24.1 kWh
Sales estimate
Approximately 20 drone batteries
Set price: 159,000 THB
SET 02
Dual-pack set
OP-25 × 2 IBC6000 × 1 IBC10000 × 1
Displayed total energy
48 kWh
Sales estimate
Approximately 40 drone batteries
Set price: 255,000 THB
The figures of approximately 20 and 40 batteries are sales estimates. Actual charging quantity depends on target battery capacity, starting state of charge, environment and conversion losses.

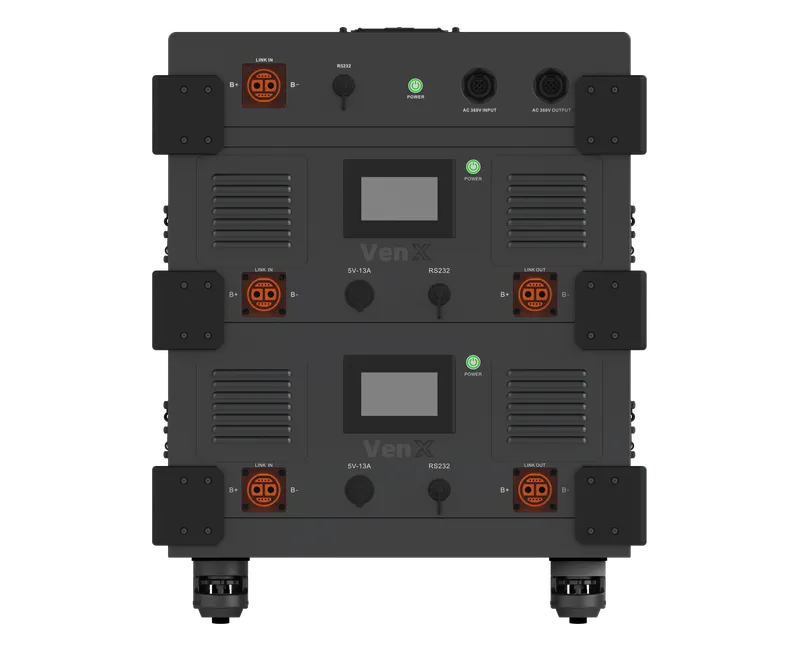

POWER BOX / THREE-PHASE OUTPUTVenX product image · Confirm configuration before orderingView front panel & connections
POWER BOX / PRODUCT 02
Three-phase power for field equipment.
Three-phase AC power for equipment in the field. Send the equipment nameplate, power requirements and daily operating time to assess the configuration.
Standard price: awaiting confirmation
Price, taxes, delivery and included accessories will be confirmed before ordering.
Specifications and accessories
Confirmed power ratings, inputs and outputs, interfaces, compatibility, box contents and optional accessories will be added here.
We need to check the drone and battery models and the charging system before confirming compatibility.
How are the estimates of 20 and 40 batteries calculated?
These figures are sales estimates. Actual quantity depends on target battery capacity, starting state of charge, environment and conversion losses.
What information should I prepare?
Drone model, battery model, required charging cycles per day and the charging power available on site.
What about use, delivery and support?
The OP-25 and charger modules are rated IP20. Installation requirements, shipping coverage and warranty terms are confirmed for the selected set and destination.
START WITH YOUR EQUIPMENT
Tell us what you need to power. Find your Power Box.
Share the equipment model or nameplate, power requirements, daily operating time and charging facilities available on site.
